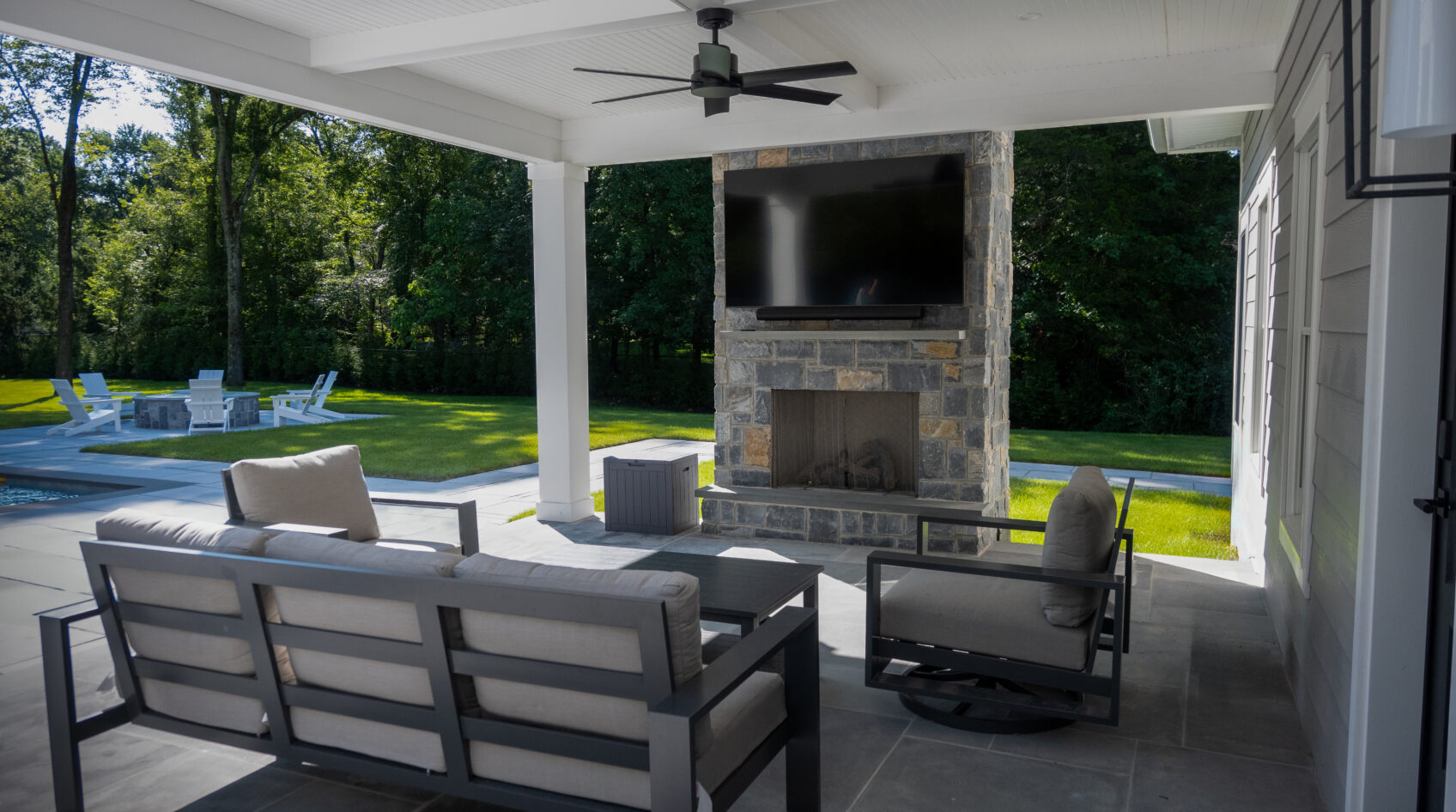

Outdoor fire features can transform a covered patio into a four-season retreat, but when a roof or pergola structure is part of the design, ventilation quickly becomes the most critical consideration. A built-in fireplace or fire pit installed beneath a covered patio not only changes the flow of air but also introduces new risks if exhaust and heat are not properly managed. As design professionals, we must treat ventilation as an integral component of layout planning – not an afterthought. But why does ventilation especially matter for covered patios?
Unlike open-air fire features, those built under a roofline must contend with trapped heat, smoke, and gases such as carbon monoxide. These elements can accumulate quickly, creating both safety hazards and discomfort. Proper ventilation ensures safe dispersal of exhaust gases away for occupied zones. It also preserves structural elements by reducing heat buildup near beams, ceilings, and finishes. It also ensures comfort and usability by minimizing smoke drift and odor accumulation.
Ventilation Strategies
When specifying fireplaces or fire pits beneath a covered space, the following measures are considered best practice:
- Adequate Roof Clearance: Most manufacturers require a minimum vertical clearance above the firebox opening. For gas fireplaces, clearances often range from 8 to 10 feet depending on unit size and BTU output (heat produced per hour). Confirming these requirements early will guide ceiling height specifications and roofline design.
- Powered Ventilation Systems: For fully enclosed or partially enclosed patios, a powered exhaust system may be required. These systems actively pull combustion gases and heat through flues and vent hoods, ensuring they do not linger under the roof. Integration should be planned during the design phase, as retrofitting is complex and often unsightly.
- Sidewall Venting and Louvers: In semi-enclosed patios, adding sidewall vents or openable louvers creates passive airflow pathways. This reduces smoke accumulation and helps maintain negative pressure for consistent draft performance. Vent locations must be carefully balanced to avoid crosswinds that force smoke back towards the occupants.
- Flue and Chimney Placement: For wood-burning and larger gas units, a chimney or extended flue system is non-negotiable. The flue should terminate above the highest point of the roofline to encourage a clean draft. Angled or offset flue designs are discourage, as they disrupt exhaust flow and create backdraft conditions.
- Gas Line and Vent Coordination: Designers should note that gas supply routing and exhaust vent placement are often intertwined. Running a gas line through roof or wall cavities requires coordination with vent systems to avoid conflicts. Early collaboration with mechanical engineers and suppliers prevents costly redesigns.
Integrating Ventilation into the Design Process
Beyond safety, ventilation affects the aesthetic and functional qualities of the covered patio. An exposed chimney becomes a focal point; louvers and vents can either disrupt or enhance the design depending on placement and finish. Approaching these components with the same design sensibility applied to stone veneer, flooring, and furnishings ensures a cohesive outcome.
The key is integration – treating ventilation not as a hidden utility but as a functional element with design potential. Custom stonework around flues, concealed soffit vents, or matching finishes on vent covers can preserve the refined character of a space while delivering essential performance.
Closing Thoughts
A built-fireplace beneath a covered patio elevates outdoor living – but only if ventilation is carefully planned. By addressing airflow requirements during the earliest stages of design, we can creates spaces that are as safe and durable as they are inviting. In the end, ventilation is not simply a matter of code compliance; it is the assurance that the fire feature will be enjoyed with confidence and comfort for years to come.
